CAD service · drawings and CNC files
No drawing?
No problem.
We turn a sketch on paper into a production-ready drawing. Once paid, you can use the files and have them cut anywhere.
What we do

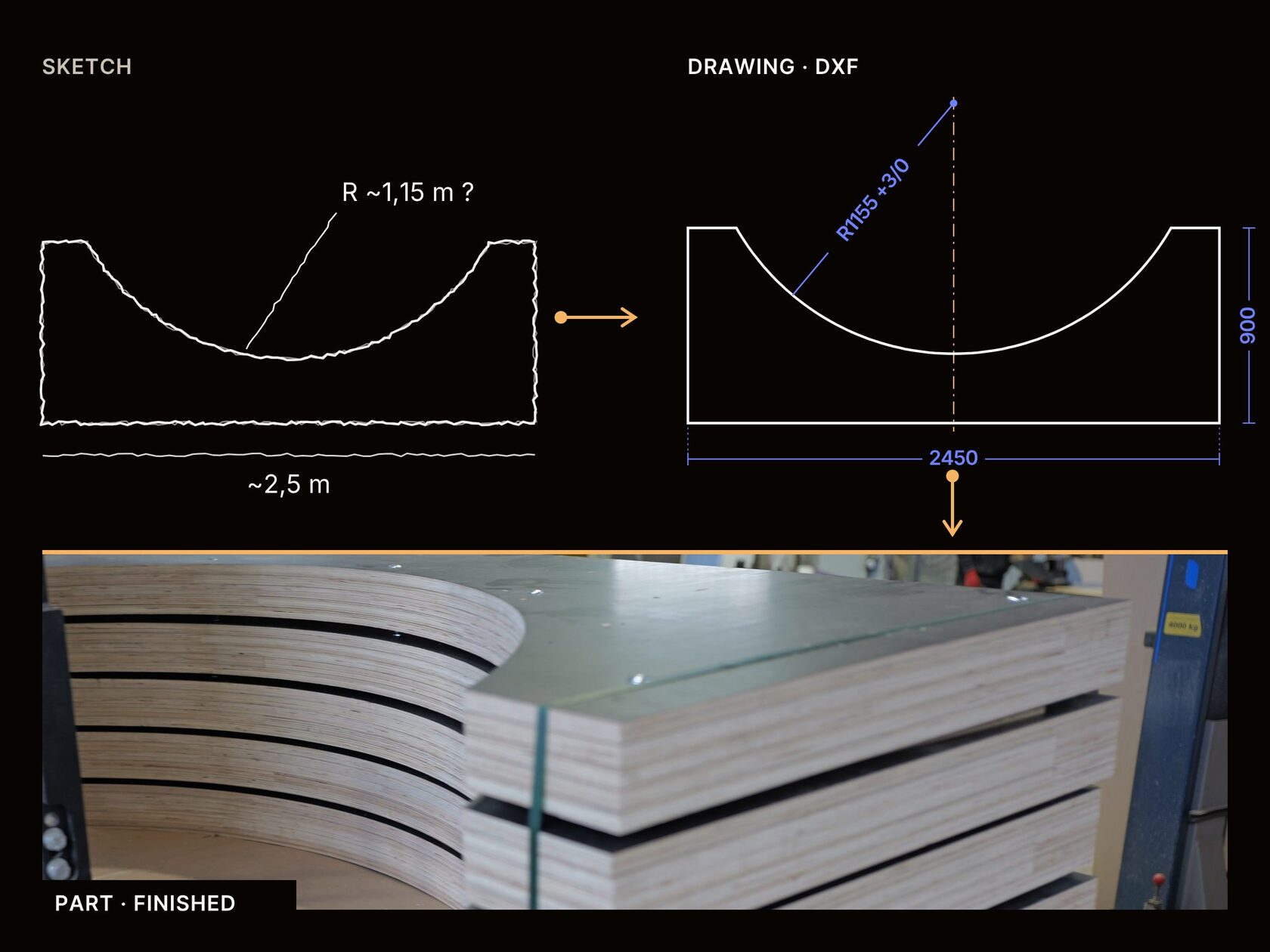

- A drawing from a sketch. You send a hand sketch or photo and the dimensions; we draw the working drawing and a DXF.
- A model from a PDF. We redraw a finished drawing as a model. If the drawing contradicts itself, we ask before cutting.
- Construction for CNC. Joints, slots and tolerances are drawn for our machine. We fix the joint clearances against the real thickness of the batch before cutting.
- Optimisation. Optimisation can reduce the number of sheets and parts and make series work cheaper (flat-pack).
- Review of someone else's model. A thorough review with notes on your model: errors, joints, what can be made cheaper. Production notes on your drawing come free with the quote; the review is a deeper job.
From a single part
to a 28-part assembly.

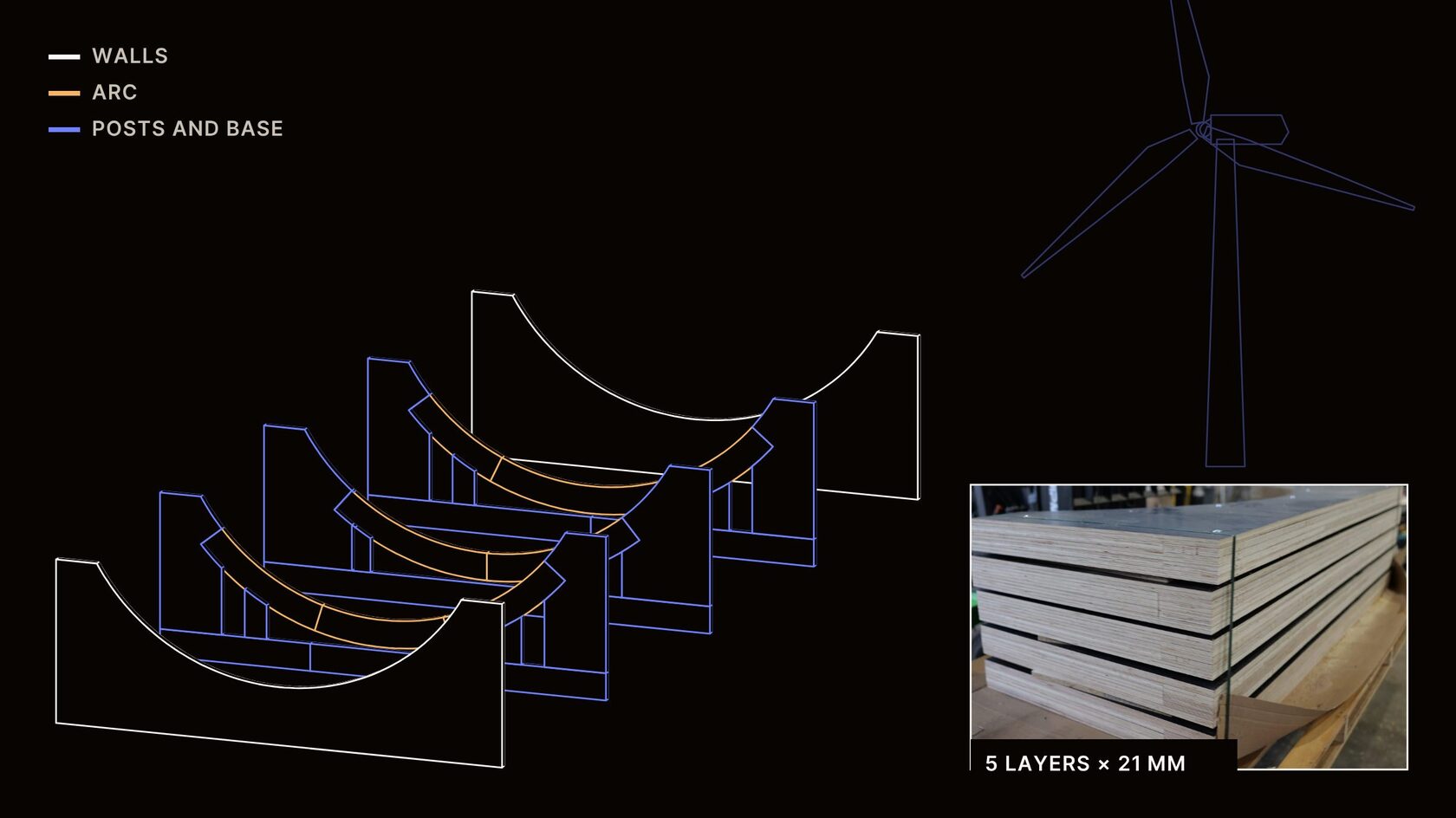

We break the assembly into parts, number them and nest them on sheets.
5 layers × 21 mmplywood
28parts in one assembly
R1155 mmarc cut on CNC
Who it is for
- Interior designers and architects with an idea or sketch who need working files.
- Furniture makers and workshops without their own constructor, or at peak load.
- Product and technology companies: from prototype to series.
- Businesses that resell cutting or printing: their customers arrive without a drawing. Ask for a quote.
- Private clients with an idea.
Packages (preliminary prices, ex VAT)
| Package | What is included | Price | Lead time |
|---|---|---|---|
| Part | Contour from a sketch or photo (you give the dimensions): DXF and PDF | 45 €, each additional part +20 € | 1 working day |
| Product | Up to 15 parts: joints, 3D model, DXF, STEP and assembly PDF, one round of revisions | 390 € | 2–3 working days |
| PDF → CAD | A finished drawing redrawn as a model and DXF; contradictions are queried | from 200 €, the exact price depends on the number of parts and the state of the drawing | 1–2 working days |
| Model review | Thorough review of someone else's model: errors, joints, what can be made cheaper | from 90 € | 1 working day |
| Design and optimisation | Construction refinement, sheet layout, flat-pack, preparation for series | by agreement | per project |
If we cut your parts in our workshop within 60 days, the drawing fee is deducted from the CNC cutting price: a Part in full, Product and PDF → CAD up to 50 % of the drawing work, but never more than the cutting price. Payment in advance.
Other CAD work: 75 €/h (ex VAT). CNC cutting lead time is separate, usually 2–5 weeks.
How it works
- You send a sketch, photo, PDF or idea.
- We ask 10–15 short questions: dimensions, material, visible face, fixings, quantity.
- We send a PDF for approval. We cut or hand over files only after your confirmation.
- You receive DXF, STEP, PDF and a specification. Once paid, you can use the files freely.
- If you want, we cut, finish and assemble in our workshop.
Why us
- Short lead times. Package targets: Part 1 working day, Product 2–3 working days; we give the exact time in the quote.
- We work from a sketch, photo or scan when all you have is an idea.
- We draw for our own CNC machine. The machine bed is 2070 × 4000 mm, accuracy ±0.5 mm.
- Optimisation. The number of sheets and parts can often be reduced; flat-pack helps in series work.

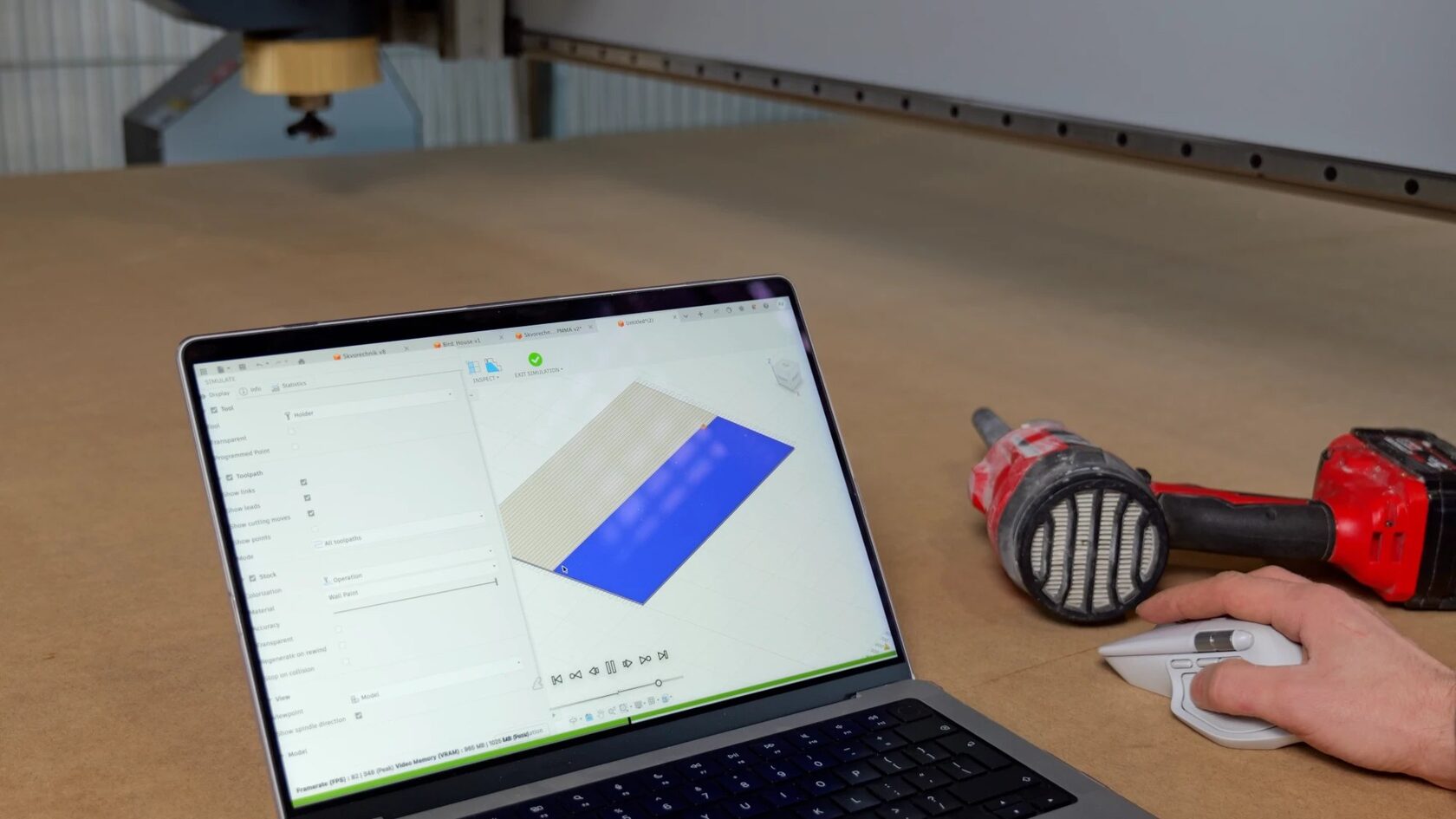

- We check before cutting. Model errors are found before the machine.

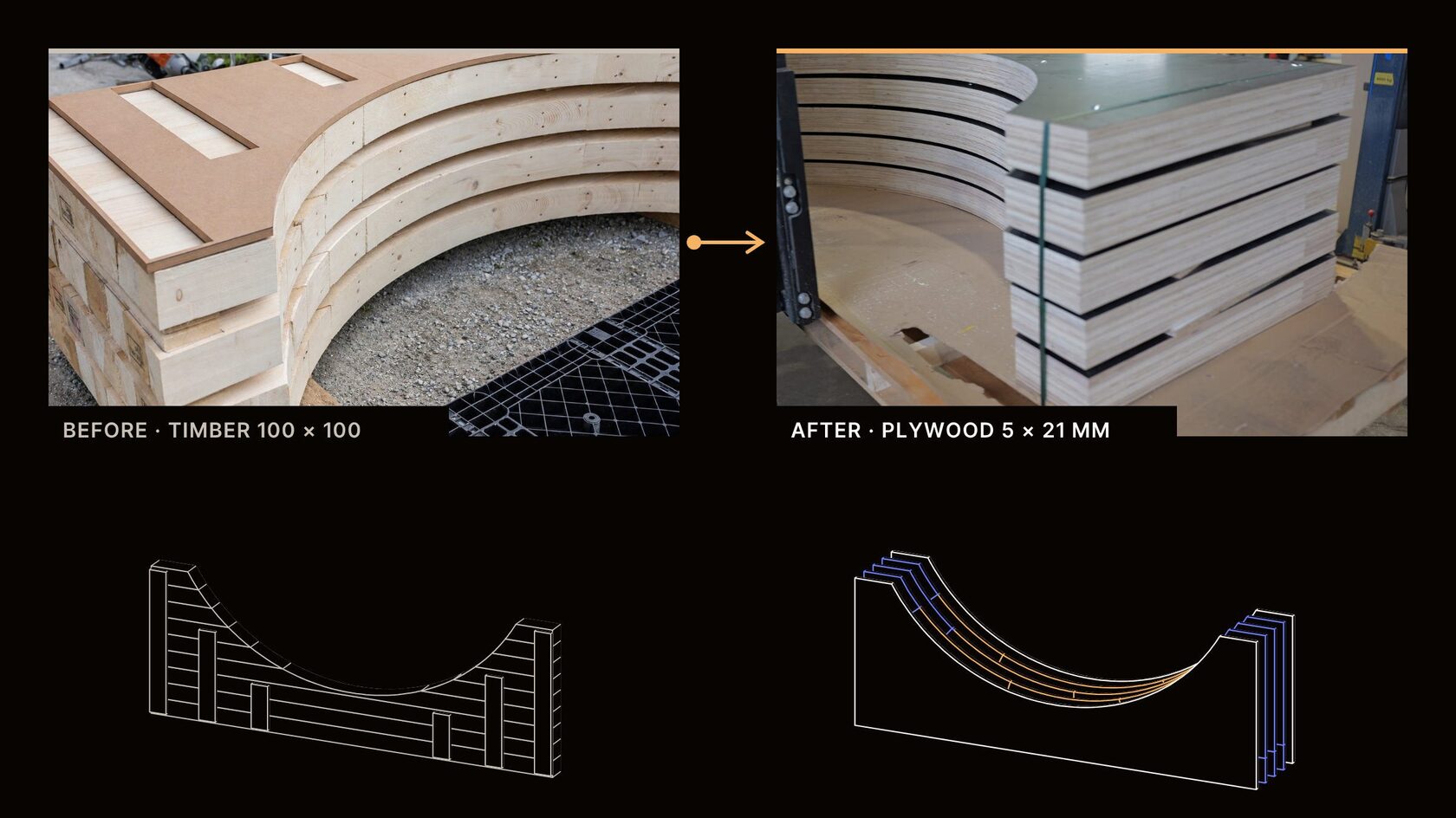

Case · cradle
The client sent a timber drawing.
We proposed plywood.
The customer's drawing showed a cradle of 100 × 100 timber. We redesigned it as five glued plywood layers: 28 parts per cradle, the arc cut on CNC, 5 units made.
- CNC arc. The R1155 mm arc is cut on CNC.
- Glued layers. Staggered joints.
- Hollow inner layers. About 65 kg per cradle by the model.
- ISPM 15. Plywood is processed wood and is exempt from ISPM 15 heat treatment and marking; any solid wood parts and the destination country's rules are checked separately.
Work we have done
- Parametric wall panel, Pärnu: 88 separately milled segments, 3000 × 900 × 100 mm; our own design and execution (design, milling, finishing, installation).
- Sanga Sandwich Bar, Tallinn: bar interior in lacquered plywood and stainless steel; our role was fabrication and installation to the interior architects' design.
More: Works.
FAQ
Which file formats will I get?
Part: DXF and PDF. Product: DXF, STEP and PDF. DWG on request. Which fit depends on the job; see also the file preparation guide.
Who owns the files?
The files and drawings you send stay yours and we use them only to fulfil your order (see the Terms of service). Once paid, you can use the files we make for you freely and have them cut anywhere.
Can we sign an NDA?
Yes. If the project requires it, we sign a separate confidentiality agreement before you send files.
How fast is it?
Package targets: Part 1 working day, Product 2–3 working days. We give the exact time in the quote. CNC cutting lead time is separate (usually 2–5 weeks).
Do I have to order cutting from you?
No. Once paid, you can have the files cut anywhere. If we cut in our workshop, the drawing fee is deducted (see the packages).
Do you work from a sketch or photo?
Yes. Send the clearest version of what you have. Dimensions cannot be taken from a photo; you provide them.
How much does it cost?
Packages are in the table. Other CAD work is 75 €/h ex VAT.
Send a sketch, photo or idea
Not sure which package fits? Send what you have. We will tell you honestly what is needed and what it costs. We reply within one working day.
